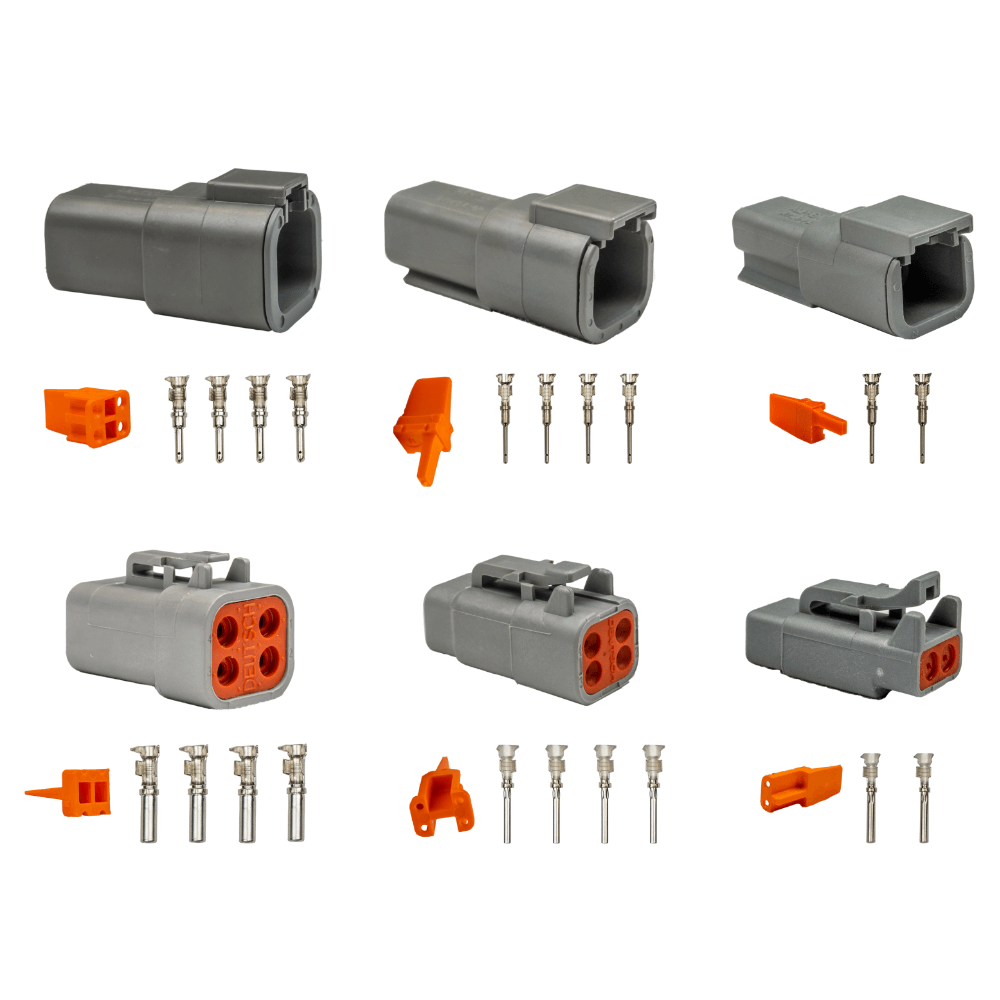

Dual Power Driver Connector Kit
Lease for as low as $/week
Learn More
FuelTech USA
FTC 5011100562
Lead Time may vary - Call or message for availability
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Share:
- This kit is designed to make your install simpler and more serviceable if need be.
- This kit contains:
- 1X 4 way DTP kit (both sides)
- 1X 4 way DTM kit (both sides)
- 1X 2 way DTM kit (both sides)
FT Dual Power Driver Manual
RECOMMENDED INSTALL INSTRUCTIONS
4-way cable from DPD to DTP 4 pin
- DTP 4 pin female
- pin 1- Large red wire from DPD
- pin 2- Large black wire from DPD
- pin 3- Large blue wire from DPD
- pin 4- Large white wire from DPD
- DTP 4 pin male
- pin 1- 12V from fuse (40A max)
- pin 2- Battery negative
- pin 3- eGate large red wire (motor +)
- pin 4- eGate large white wire (motor -)
2-way cable from DPD to DTM 2 pin
- DTM 2 pin female
- pin 1- Small red wire from DPD
- pin 2- Small white wire from DPD
- DTM 2 pin male
- pin 1- ODD numbered yellow output (1, 3, 5, or 7)
- pin 2- EVEN numbered yellow output (2, 4, 6, or 8)
eGate sensor wires to DTM 4 pin
- DTM 4 pin female
- pin 1- Small red wire from eGate (5V+)
- pin 2- Small black wire from eGate (sensor ground)
- pin 3- Small white wire from (position signal)
- pin 4- Small orange/yellow from eGate (temperature signal)
- DTM 4 pin male
- pin 1- Green/red stripe from ECU (5V+)
- pin 2- Green/black stripe from ECU (sensor ground)
- pin 3- Any available white input wire from ECU (position signal)
- pin 4- Any available white input wire from ECU (temperature signal)
NOTE- the small blue wire from eGate multi core wire is not used
