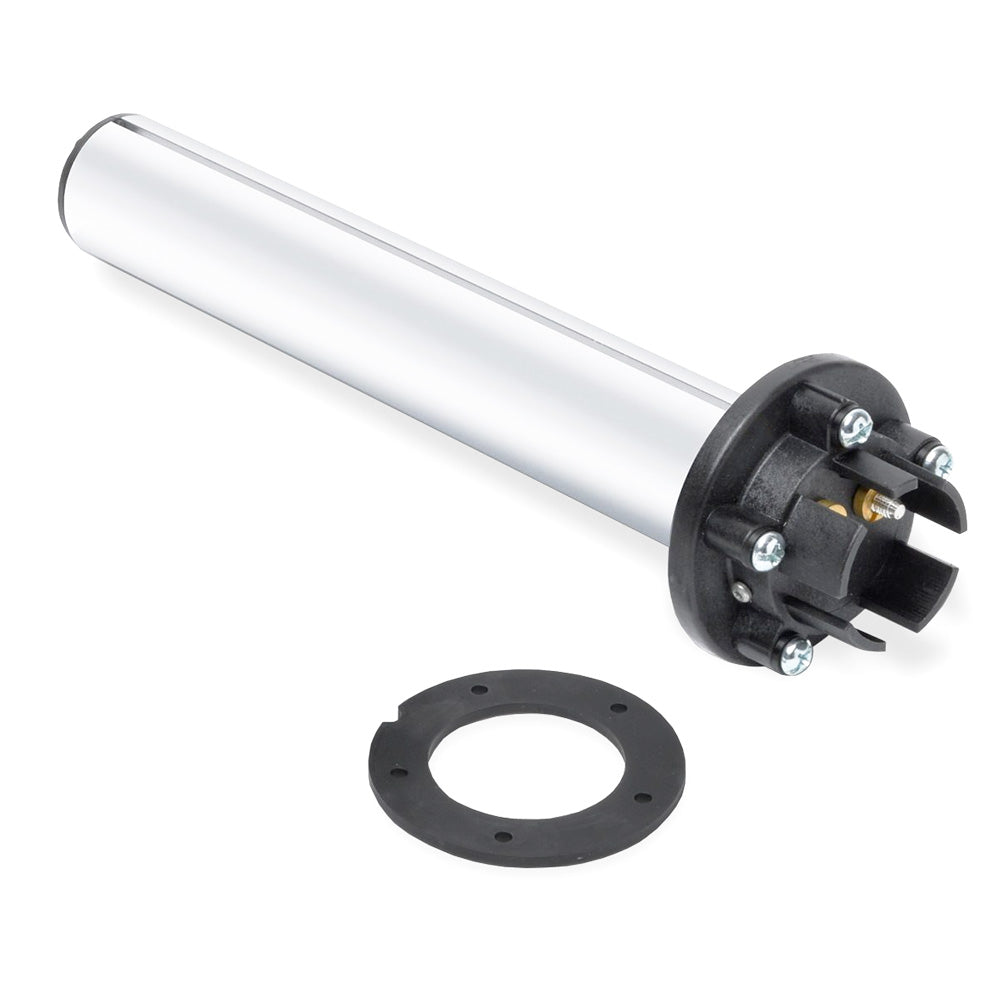

Fuel Level Sending Unit 381mm (15") 0-90 Ohms
Lease for as low as $/week
Learn More
Nuke Performance
NUK 150-FLS-15-01
Lead Time may vary - Call or message for availability
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Share:
ISSPRO fuel level sending unit fits the Nuke Performance CFC Unit.
0-90 Ohms fuel level sending unit available with our without fuel gauge that fits standard SAE 5-bolt mounting pattern.
Fits fuel cells provided by Nuke Performance:
| 150-FLS-07 : 177 mm / 7" | N/A |
| 150-FLS-08 : 203 mm / 8" | Pyrotect Elite 6.25 gal / 23 literPyrotect Elite 8 gal / 30 literATL Saver Cell 30 literATL Saver Cell 45 literATL Saver Cell 45 liter "Well Cell"ATL Saver Cell 60 literATL Saver Cell 80 literNuke Performance LightCell 25 literNuke Performance LightCell 35 liter |
| 150-FLS-09 : 228 mm / 9" | Pyrotect Elite 10 gal / 38 literPyrotect Elite 12 gal / 45 literPyrotect Elite 15 gal / 55 literPyrotect Elite 18 gal / 68 literPyrotect Elite 22 gal / 83 literATL Saver Cell 40 literNuke Performance AluCell 20 literNuke Performance AluCell 40 literNuke Performance AluCell 45 liter "WellCell"Nuke Performance AluCell 60 liter |
| 150-FLS-10 : 254 mm / 10" | Nuke Performance LightCell 45 literNuke Performance LightCell 55 liter |
| 150-FLS-11 : 279 mm / 11" | N/A |
| 150-FLS-12 : 305 mm / 12" | Pyrotect Elite 17 gal / 64 literNuke Performance AluCell 80 liter |
| 150-FLS-13 : 330 mm / 13" | Pyrotect Elite 24 gal / 90 liter |
| 150-FLS-15 : 381 mm / 15" | Pyrotect Elite 26 gal / 98 literPyrotect Elite 32 gal / 121 liter |
| 150-FLS-16 : 406 mm / 16" | N/A |
Ohm resistance:
0 Ohms : empty
90 Ohms : full
Optional specifications:
Also available as 240-33 Ohms, available here.
• Fuel level sending units for motorsports, aftermarket fuel cells
Fits the most common fuel cells including Pyrotect, ATL, Fuel Safe, Harmon, Premiere, Jaz, and more, and is the perfect match for the Nuke Performance Competition Fuel Cell Unit. Ordered with our without fuel level gauge.
• I have lost my adapter plate/spacer for the fuel level sender unit, can I order a new one? My fuel level sender unit doesn´t fit the mounting point in the CFC Unit, what should I do?
An adapter plate/spacer is needed to either mount a fuel level sender that has a wider diameter than the hole in the CFC Unit or uses the common asymmetric 5 bolt pattern often found on aftermarket fuel level senders. The spacer/adapter plate is included with all Nuke Performance CFC Units when purchased, if lost you can order a replacement plate. You find a detailed mounting description in the CFC Unit product manual here.
5-bolt asymmetric adapter plate Part #: 150-10-117
• Approved for all types of fuels, for all types of motorsports
Approved for petrol, methanol, and ethanol. Available in several different lengths, choose the size when placing an order. If ordered together with a fuel cell we will make sure that you get the right one delivered with your order.
• Order the fuel level gauge without a fuel level sending unit
If you need a fuel level gauge and already purchased your sending unit, you can buy the gauge as an accessory if needed.
Fuel Gauge OHM Rating 0-90 Ohms Part # : 150-FLG-01
• Download Product Manual (.pdf)
