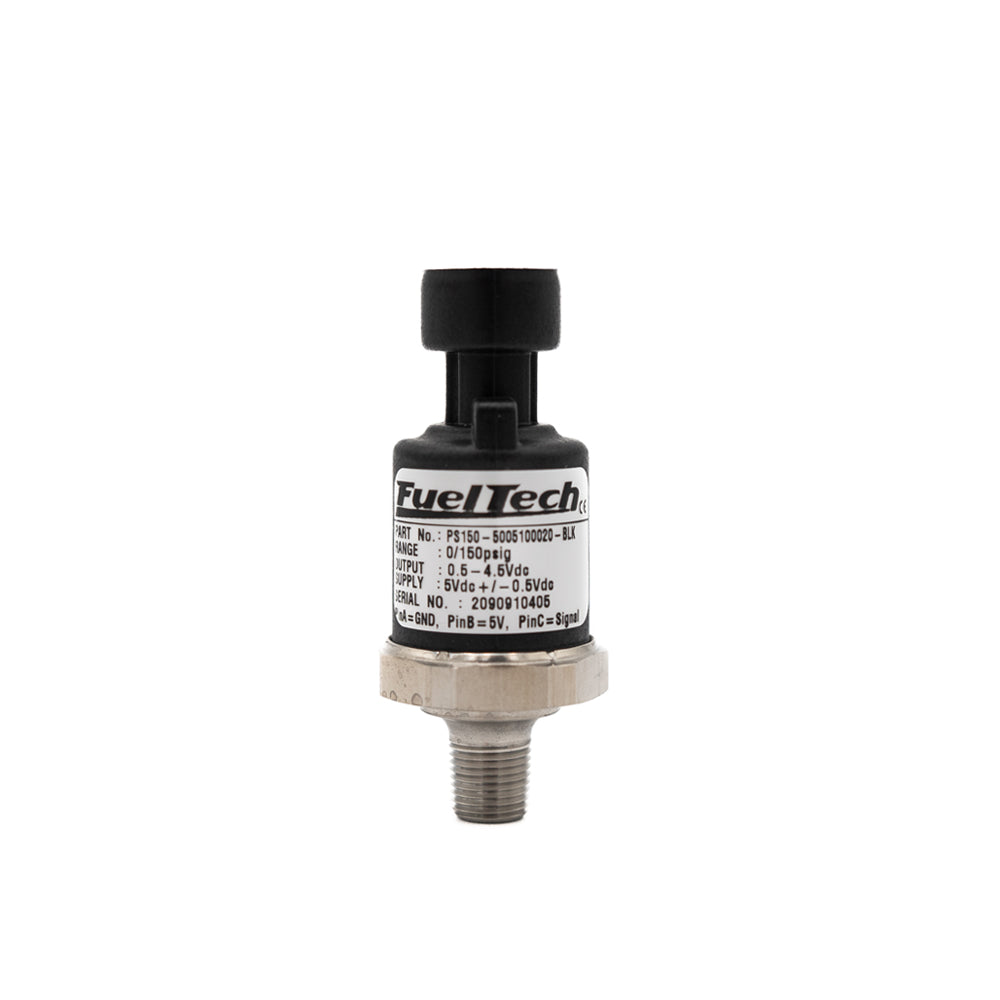

PS-150 Pressure Sensor (0-150 psi)
Lease for as low as $/week
Learn More
FuelTech USA
FTC 005100020-BLK
Lead Time may vary - Call or message for availability
CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Share:
)
- FuelTech's 0-150psi Pressure Sensors provide accurate and reliable pressure readings in high-performance automotive applications such as racing. Engineered for precision and durability, these sensors deliver real-time data essential for optimizing engine performance and ensuring safe operation. Whether used for monitoring fuel, oil, or boost pressure, these sensors provide invaluable insights to enthusiasts and professionals alike, making them an indispensable component in any performance-driven setup.
TECHNICAL DESCRIPTION
- Output: 0.5-4.5V
- Supply: 5V
- Range: 0-150 psi
- Thread size: 1/8" NPT
Connector Pinout:
- A - Ground
- B - 5V
- C - Signal
SPECS
Performance Long Term Drift: 0.2% FS/YR (non-cumulative)
Accuracy: 0.25% FS
Thermal Error: 0.83% FS/100°F (1.5% FS/100°C)
Compensated Temp: -40°F to +257°F (-40°C to +125°C)
Operating Temp: -40°F to +257°F (-40°C to +125°C)
Zero Tolerance: 0.5% of span
Span Tolerance: 0.5% of span
Response Time: 1ms
Fatigue Life: 1M Cycles
Wetted Parts: 17-4 PH Stainless Steel
Enclosure: IP67 (IP65 for electrical code G)
Vibration: 40G peak to peak sinusoidal, (Random Vibration 20 to 1000hz @ approx 40G peak per MIL-STD-810E)
Shock: Withstands free fall to IEC 68-2-32 procedure 1
EMC (Radiated Immunity): 100V/m
Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228
Weight: 35 Grams
